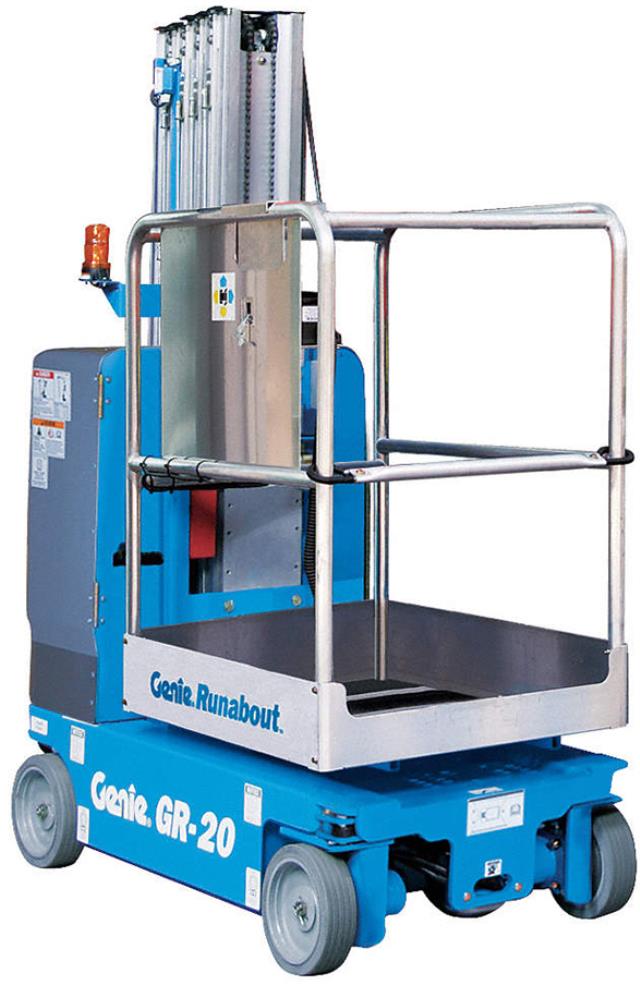

VERTICAL MAST LIFT, 20 FT.

These 20 ft. vertical mast lifts are compact, low-weight machines that increase productivity on the job thanks to their ability to fit through doorways and in most passenger elevators. A zero inside turning radius and full elevation drive feature also contribute to their increased versatility.

Max Platform Standing Height: 19 Ft. 9 In.

Operating Weight: 2,538 Lbs.

Platform Load Capacity: 350 Lbs. Total (250 Lbs. On Ext. Deck)

Platform Size (L x W): 35 in. x 29.5 in. Standard (55 in. x 29.5 in. extended)

Maximum Gradeability: 30% (17 Deg.)

Drive Speed: 2.5 Mph Stowed - 0.5 Mph Elevated

Max. Allowable Inclination: 1.5 Deg. Side, 3 Deg. Front, 3 Deg. Rear

Turning Radius: Inside, Zero - Outside, 53 In.

Tires and Ground Clearance: Solid, Non-Marking Tires, 2-1/2 In. Clearance

Max. Allowable Sway Force: 28 Mph Wind Speed, 100 Lbs. Side Force

Tire Load and Contact Pressure: 870 Lbs., and 134 PSI (242 Psf)

Power Source: 4 Batteries, 6 Volt 225Ah

Stowed Size (LxWxh): 53 In. x 31-1/2 In. x 78 In.
