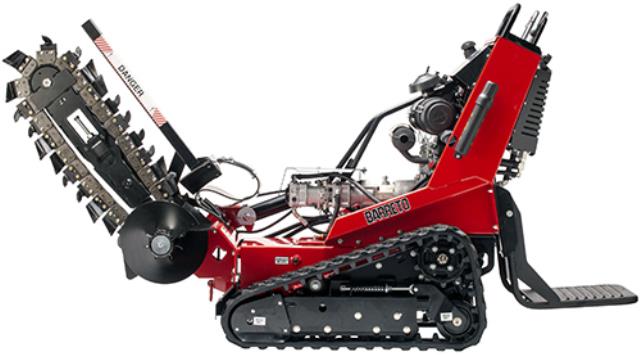

TRENCHER, TRACK WALK-BEHIND

The innovative all-hydraulic design of these walk-behind track trenchers means no belts, gears, or chains. The innovative track system and compact frame design provide both stability and maneuverability. The intuitive controls result in reliable operation in the most difficult trenching conditions.

Unit Weight: 1,690 Lbs.

Maximum Trench Width: 6 In.

Maximum Trench Depth: 36 In.

Ground Speed: 210 FPM Forward - 90 FPM Reverse

Power: 4 Cycle, 20 Hp, Air Cooled Engine

Fuel Type and Capacity: Unleaded Gasoline - 3.2 Gals.

Start Method: Electric Start

Track Width: 7.1 In.

Ground Contact: 470 Sq. Inches of Contact

Overall Size (LxWxH): 108 In. x 36 In. x 56 In.
