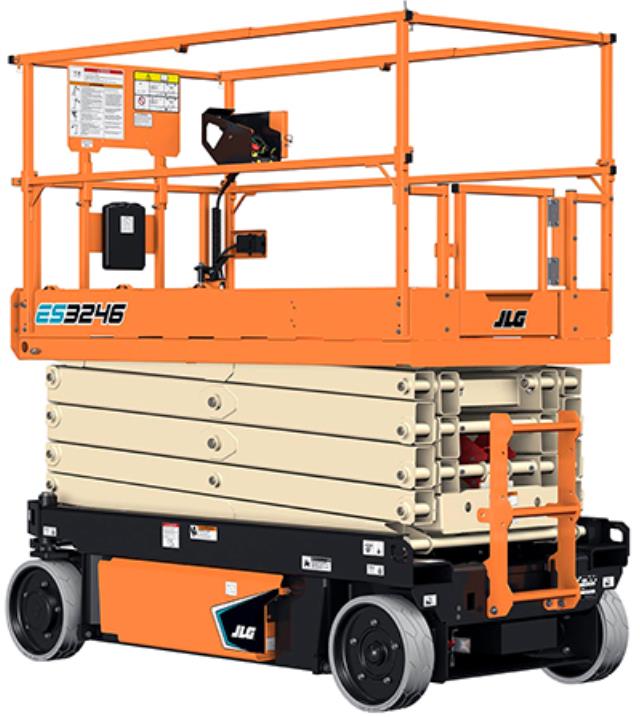

SCISSOR LIFT, 32 FT. ELECTRIC

Experience the benefits of reduced charging time and longer runtime with these 32 ft. electric scissor lifts. They offer up to a 705-lb capacity, and are designed to provide operators with a quieter work area, less dependency on hydraulic oils, and zero emissions. Also, the innovative operator controls make this unit extremely mobile and easy to operate.

Max Platform Standing Height: 32 Ft.

Stowed Height: 6 Ft. 6 In. with Rails Folded Down

Operating Weight: 5,620 Lbs.

Platform Load Capacity: 705 Lbs. Total (265 Lbs. on Ext. Deck)

Platform Size (L x W): 84 In. x 41.6 In.

Maximum Gradeability: 25% (14 Deg.)

Drive Speed: 3 Mph Stowed - 0.5 Mph Elevated

Operating Times: Lift, 55 Seconds - Lower, 62 Seconds

Maximum Wind Speed: 28 Mph

Tire Load and Contact Pressure: 2,070 Lbs., and 87 PSI

Ground Clearance: 5 In.

Turning Radius: 7 Ft. 11 In. (Outside)

Overall Size (LxWxH): 94 In. x 46 In. x 96 In.
