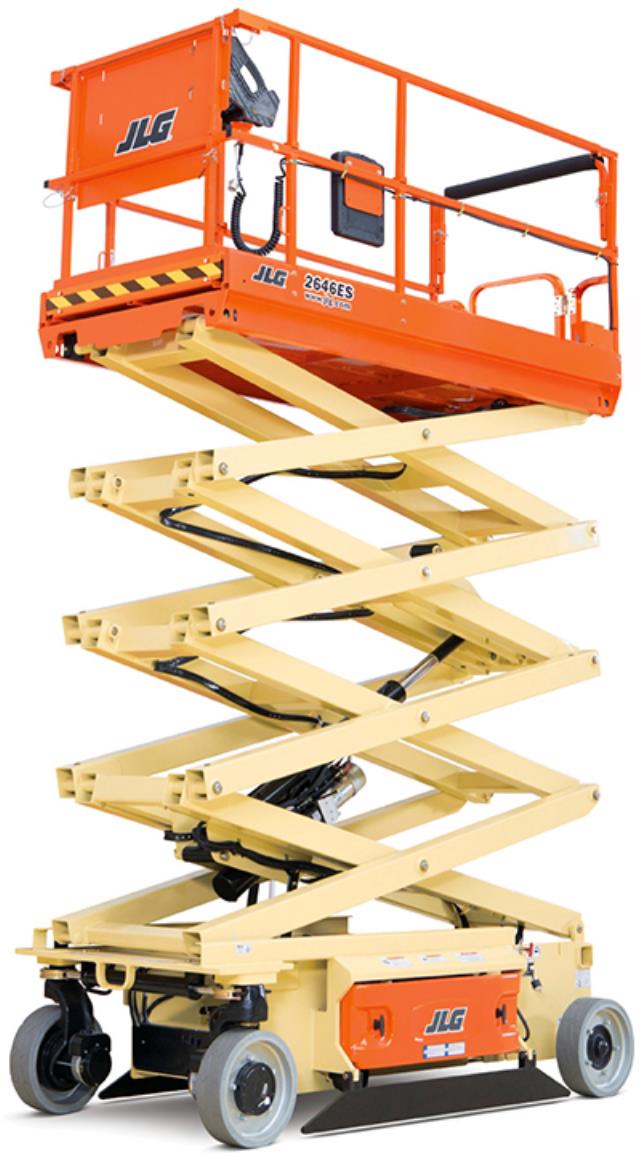

SCISSOR LIFT, 26 FT. ELECTRIC

Experience the benefits of reduced charging time and longer runtime with these 26 ft. electric scissor lifts. They offer up to a 1000-lb capacity, and are designed to provide operators with a quieter work area, less dependency on hydraulic oils, and zero emissions. Also, the compact dimensions and innovative operator controls make this unit extremely mobile and easy to operate.

Max Platform Standing Height: 26 Ft.

Stowed Height: 7 Ft. 9 In. to top of rails

Operating Weight: 4,975 Lbs.

Platform Load Capacity: 1,000 Lbs. Total (250 Lbs. on ext. deck)

Platform Size (L x W): 99 In. x 44 In.

Maximum Gradeability: 25% (14 Deg.)

Drive Speed: 3 Mph Stowed - 0.5 Mph Elevated

Operating Times: Lift, 41 Seconds - Lower, 50 Seconds

Maximum Wind Speed: 28 Mph

Tire Load and Contact Pressure: 2,070 Lbs., and 87 PSI

Ground Clearance: 5 In.

Turning Radius: 7 Ft. 11 In. (Outside)

Overall Size (LxWxH): 99 In. x 46 In. x 93 In.
