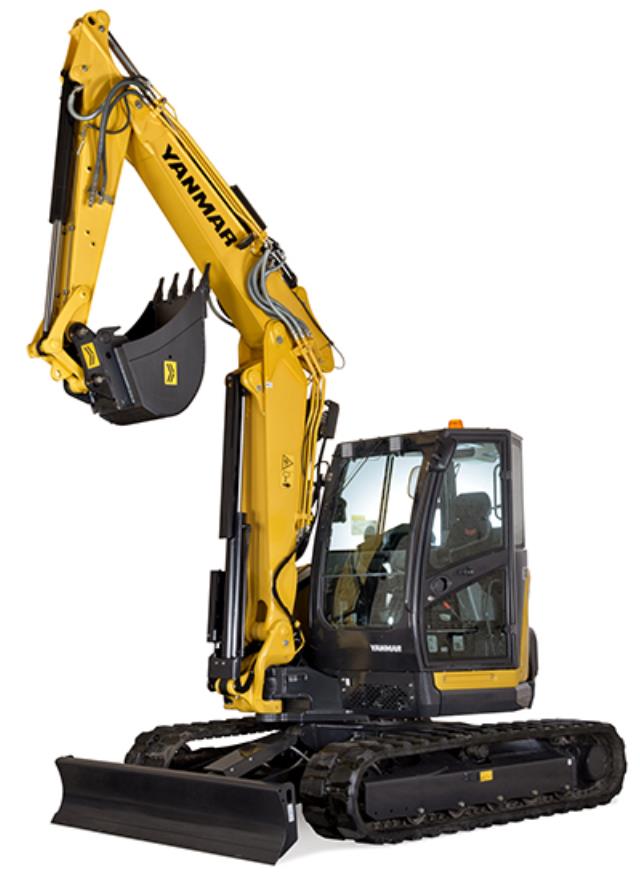

EXCAVATOR, 9 TON WITH THUMB

This 9 ton excavator is one of the industry's largest zero tail swing units and typically goes where bigger, clunkier machines simply can t. You get the flexibility to work effectively against buildings or obstacles without sacrificing the power to do the job right. Its unmatched operator comfort and ease of operation means you ll always have the right machine for the job.

Operating Weight: 18,136 Lbs.

Max. Digging Depth: 15 Ft. 4 In.

Max. Digging Reach: 23 Ft. 11 In. at Ground Level

Max. Dump Height: 15 Ft. 1 In.

Max. Application Force: 8,363 Lbs. Arm Force - 11,330 Lbs. Dig Force

Power: Water Cooled, 4 Cyl., 57 Hp Engine

Fuel Type and Capacity: Diesel Fuel, 30.4 Gals.

Max. Swing Angle: 60 Deg. Right - 57 Deg. Left

Blade: 88 In. x 18 In., 17 In. Lift - 20 In. Lowering

Hydraulic Pressure and Flow: 3,698 PSI and 56 GPM

Tracks: Steel Hybrid - Removable Rubber Pads

Track Width and Ground Pressure: 18 In. Width - 5.25 PSI

Overall Size (LxWxH): 21 Ft. 2 In. x 7 Ft. 4 In. x 8 Ft. 10 In.
