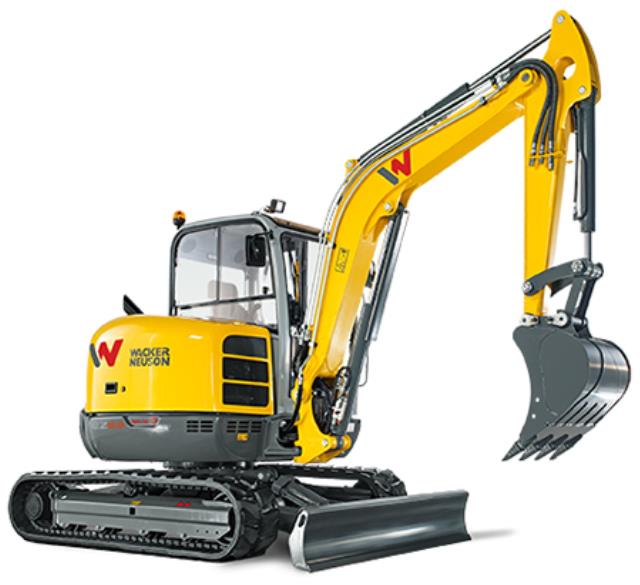

EXCAVATOR, 6 TON CLASS

This 6 ton conventional tail excavator is one of the strongest machines in its weight class. Its compact size, high performance and low center of gravity allow this excavator to work in a variety of applications, and in spatially confined areas.

Operating Weight: 13,402 Lbs.

Max. Digging Depth: 12 Ft. 7 In.

Max. Digging Reach: 20 Ft. at Ground Level

Max. Dump Height: 12 Ft. 10 In.

Max. Application Force: 6,924 Lbs. Arm Force - 10,341 Lbs. Dig Force

Power: Water Cooled, 4 Cyl., 2.2L, 61 Hp Engine

Fuel Type and Capacity: Diesel Fuel, 22 Gals.

Max. Swing Angle: 63 Deg. Right - 67 Deg. Left

Stabilizer Blade: 77 In. x 17 In.

Stabilizer Blade Travel: 16 In. Lift - 17 In. Lowering

Hydraulic Pressure and Flow: 3,481 PSI and 38 GPM

Tracks: Rubber, 16 In., 5 PSI Ground Pressure

Overall Size (LxWxH): 21 Ft. x 6.5 Ft. x 8 Ft. 2 In.
