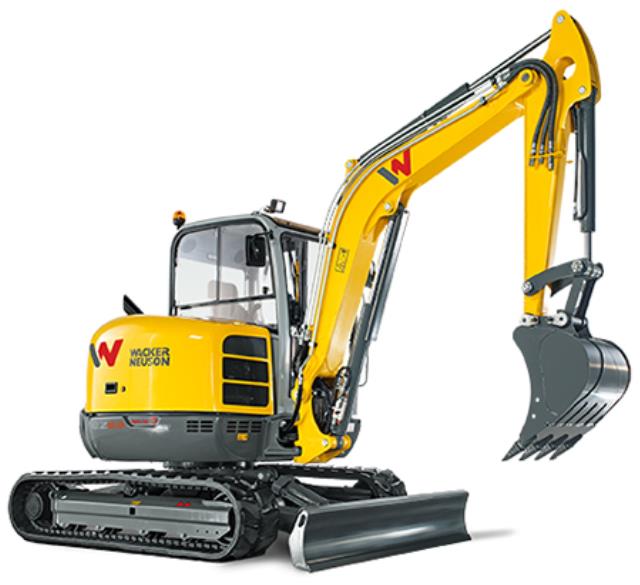

EXCAVATOR, 5 TON CLASS

This 5 ton compact excavator combines the performance of a conventional track excavator with the excellent maneuverability of a zero tail swing machine. When revolved, the tail of this unit does not project over the width of the tracks. The Vertical Digging System (VDS) equipped units enables progressive tilting of the superstructure by up to 15 degrees, allowing the operator to compensate for slopes up to 27%.

Operating Weight: 12,800 Lbs.* (Due To Added Counter Weight)

Max. Digging Depth: 11 Ft. 2 In.

Max. Digging Reach: 19 Ft. 1 In. at Ground Level

Max. Dump Height: 12 Ft. 5 In.

Max. Application Force: 5,980 Lbs. Arm Force - 7,598 Lbs. Dig Force

Power: Water Cooled, 4 Cyl., 38.3 Hp Engine

Fuel Type and Capacity: Diesel Fuel, 22 Gals.

Max. Swing Angle: 61 Deg. Right - 65 Deg. Left

Stabilizer Blade: 6.5 Ft. x 15 In.,

Stabilizer Blade Travel: Max 16 In. Lift, 18 In. Lowering

Max. Vertical Dig Angle (VDS): 15 Deg.

Hydraulic Pressure and Flow: 3,336 PSI and 42.4 GPM (At 2,590 RPM)

Overall Size (LxWxH): 18 Ft. 1 In. x 6 Ft. 6 In. x 8 Ft. 9 In.
